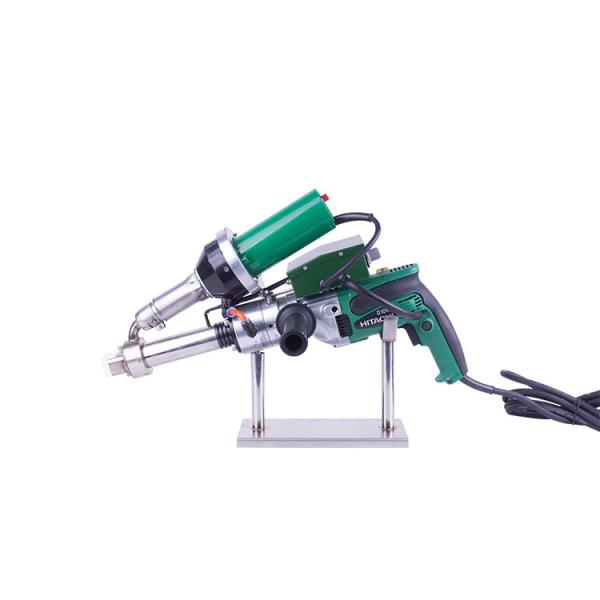

SWT - NS600A HDPE Plastic Hot Air Extruders For Pond Liner With 4mm Rod
Extrusion Welding Machine Introduction:
CE Approved Water Tank High-Density Polyethylene Extrusion Welding Machine has functions of double independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to welding PE, PP, PVC, PVDF and etc.
Extrusion Welding Machine Specification:
| Voltage: | 220V, customized |
| Welding Material | PP PE |
| Power: | 1600W Hot Air + 800W Hitachi Motor |
| Wind Temperature: | 20-600℃ |
| Welding Shoe | V & Flat, customized |
| Extruding Volume: | 2 kg/h |
| Diametere of Welding Rod: | Φ3.0mm-4.0mm |
| Spare Parts | Heating Element |
| Usage: | PP PE Tank |
| Wedling Thickness: | 1-20mm |
Extrusion Welding Machine Welding Process:
Extrusion welding allows the application of bigger welds in a single weld pass. It is the preferred technique for joining material over 6 mm thick. The welding rod is drawn into a miniature handheld plastic extruder, plasticized, and forced out of the extruder against the parts being joined, which are softened with a jet of hot air to allow bonding to take place.
Accessories:
Each set includes: machine + fillet welding shoe + overlap welding shoe + heating element + disassembly tools + operation manual + aluminum box + carton
Packing Size
| L×W×H | 640×190×500 mm |
| N.W | 6.5kg |
| G.W | 13kg |
Application:
Seivices:
We always provide high quality products and workable price for every clients and have won the confidence and approval.
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
